Apply a DoE palette to the fill aesthetic

Source: R/scales.R
scale_fill_doe.Rd

Apply a DoE palette to the fill aesthetic

Usage

scale_fill_doe(
  palette = doe_palettes$default,
  discrete = TRUE,
  direction = 1,
  ...
)

Arguments

palette

An object of class palettes_palette. Several useful palettes are ready to use in the list doe_palettes, which is included with the doestyle package. The default is doe_palettes$qualitative$default, which uses all of the on-brand colours defined in the NSW Department of Education Brand Guidelines.

discrete

Logical indicating whether the desired scale should be discrete. The default is TRUE. If FALSE, a continuous scale with interpolated colours will be constructed, instead.

direction

Sets the order of colours in the scale. If 1, the default, colours are ordered from first to last as they appear in the palette. If -1, the order of colours is reversed.

...

Additional arguments passed to ggplot2::discrete_scale() or ggplot2::continuous_scale().

Value

A scale function that can be added to a ggplot2 plot.

See also

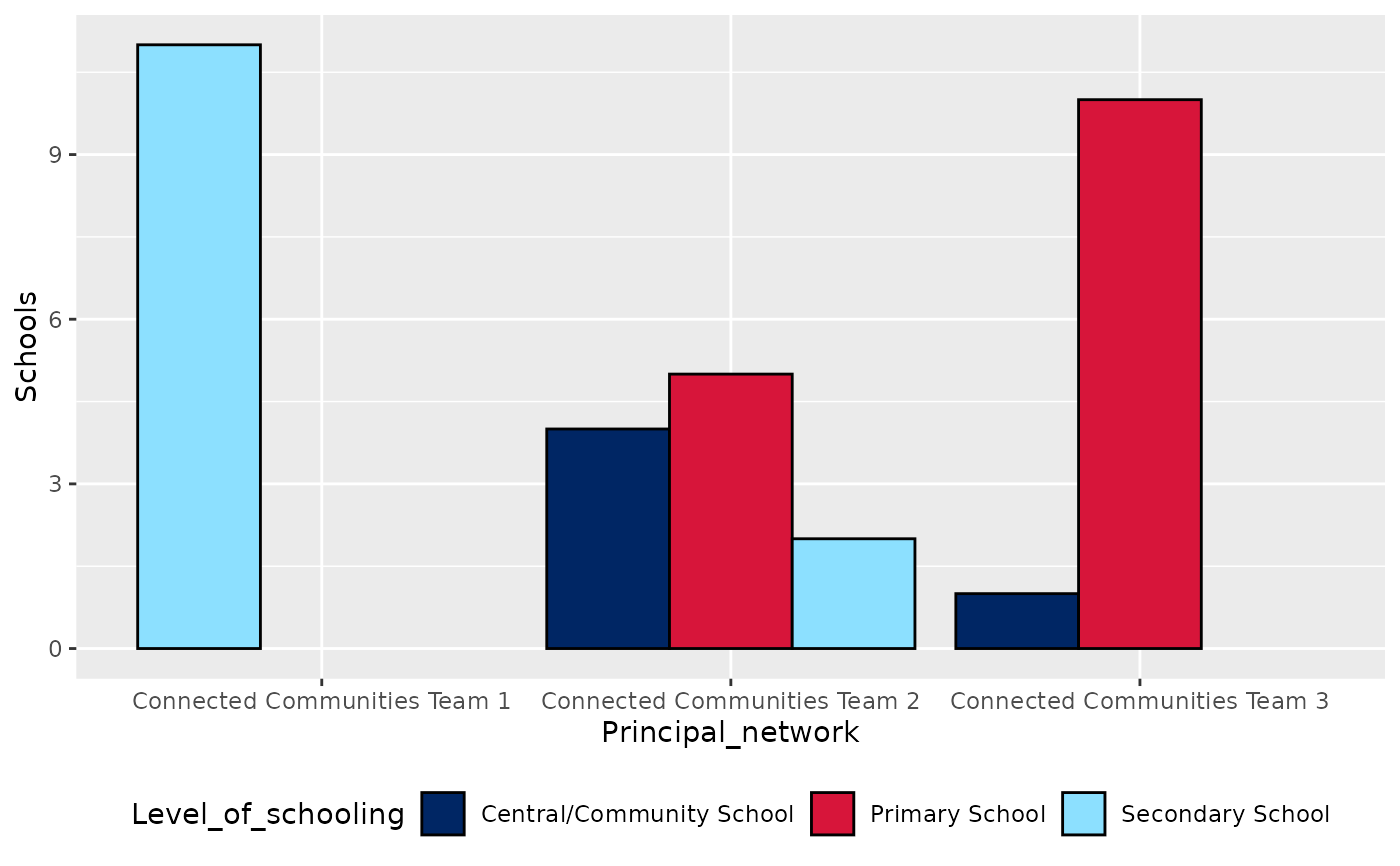

Examples

library(doestyle)
library(dplyr)
library(ggplot2)

public_schools |>
  filter(grepl("Connected Communities", Principal_network)) |>
  ggplot(aes(x = Principal_network, fill = Level_of_schooling)) +
  geom_bar(colour = "black", position = position_dodge(preserve = "single")) +
  theme(legend.position = "bottom") +
  labs(y = "Schools") +
  # Add a default department scale to the `fill` aesthetic.
  scale_fill_doe()
